Martin Audio Blackline F12+ Compact Two-way Passive Speaker System

SKU: E-5-707

Brand:
Martin Audio

Category:
Pro-Audio

Sub-Category:
Speakers

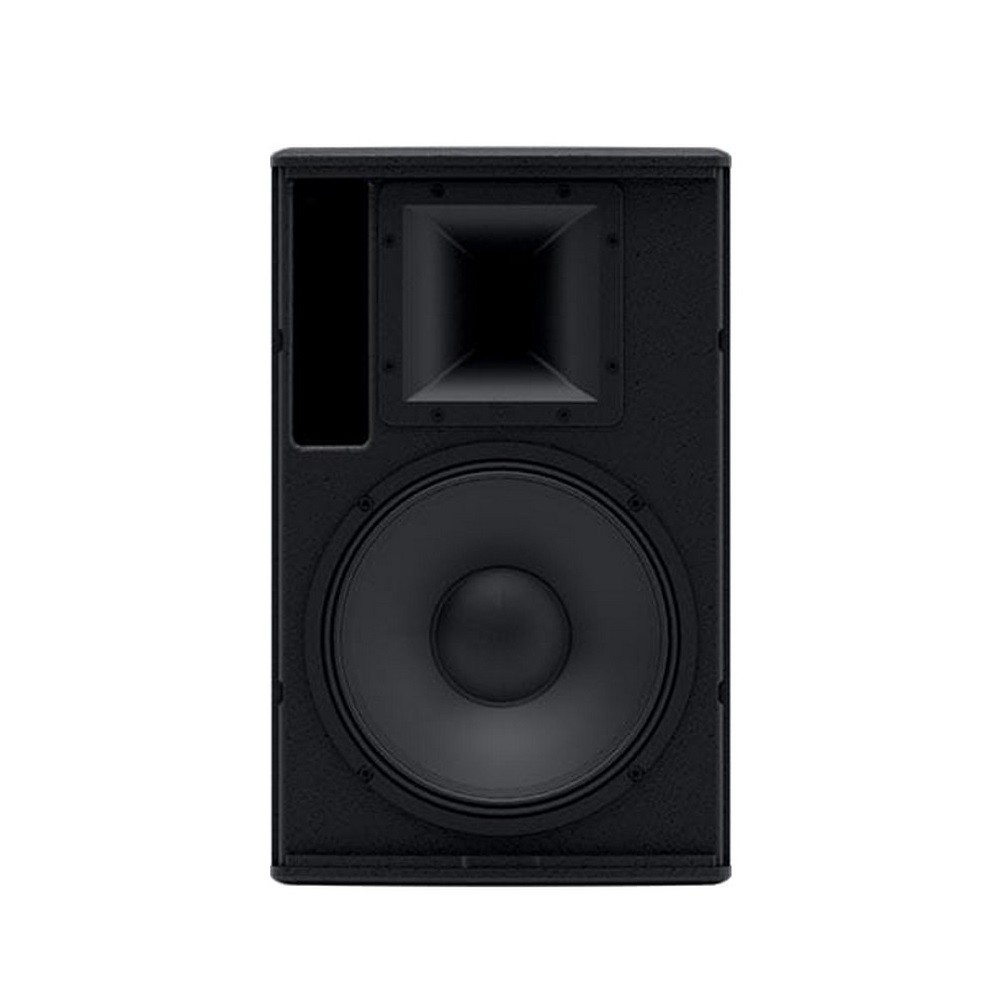

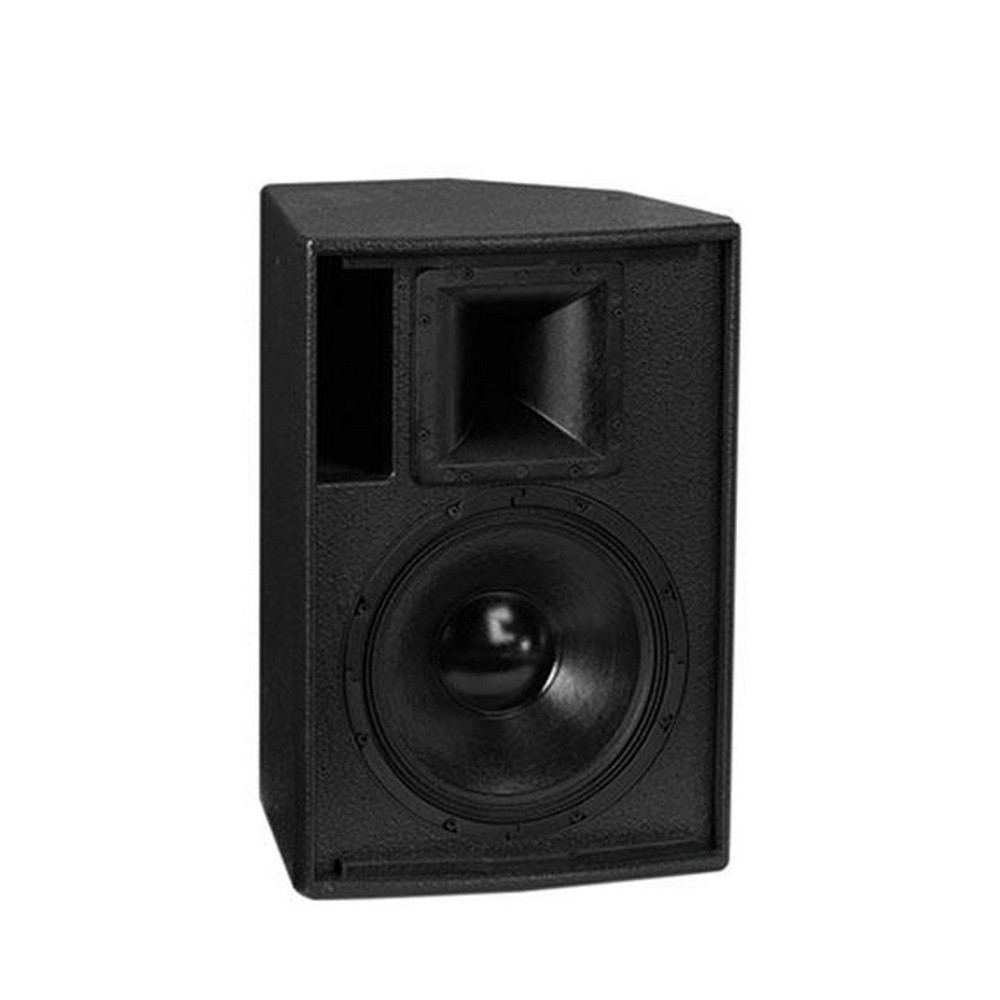

The Blackline F12+ is a high power, compact two-way system with a new, vented-chassis, 12 inch (300mm) LF driver and a new 1 inch (25mm) exit compression driver mounted on a rotatable 80˚ x 50˚ constant directivity HF horn. The LF driver has a tough, water resistant cone and features a high BL motor with a flat-wire copper coil and an aluminium demodulating ring. This reduces intermodulation distortion and improves midrange performance when driven hard. Increased excursion is available by virtue of a triple roll surround and deep motor structure. The directivity of the LF driver has been matched to the HF horn in the crossover region by improved crossover design and cone profile optimisation, also the new HF compression driver utilises an ultra-lightweight Kapton diaphragm for extended high frequency response.

PHP 77,600.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

The Blackline F12+ is a high power, compact two-way system with a new, vented-chassis, 12 inch (300mm) LF driver and a new 1 inch (25mm) exit compression driver mounted on a rotatable 80˚ x 50˚ constant directivity HF horn. The LF driver has a tough, water resistant cone and features a high BL motor with a flat-wire copper coil and an aluminium demodulating ring. This reduces intermodulation distortion and improves midrange performance when driven hard. Increased excursion is available by virtue of a triple roll surround and deep motor structure. The directivity of the LF driver has been matched to the HF horn in the crossover region by improved crossover design and cone profile optimisation, also the new HF compression driver utilises an ultra-lightweight Kapton diaphragm for extended high frequency response.

The F12+ is the ideal choice for fullrange applications calling for an efficient, reliable workhorse that is equally suitable for fixed installations or quick deployment mobile operations. Its ergonomic design and rotatable HF horn makes near-ceiling mounting and aiming easy in venues with restricted height, whilst its multi-angle birch ply cabinet also allows it to be used as a highly intelligible floor monitor. Ten M8 inserts and four M8 bracket inserts make a variety of mounting methods possible including horizontal or vertical mounting.

The F12+ comes with a top hat fitting for speaker stand mounting. This fitting can also be used as a pole socket when the F12+ is used with a Blackline S15+ or S18+ subwoofer.
A Martin Audio M3+ or DX1.5 Electronic Controller is available to provide F12+/subwoofer crossover and limiter facilities.

TYPE : Compact, two-way passive
FREQUENCY RESPONSE (5): 65Hz-18kHz ± 3dB
-10dB @ 55Hz
DRIVERS :12 inch (300mm)/2.5 inch (63.5mm) voice coil LF driver
1 inch (25mm) exit HF compression driver
RATED POWER (2) : 300W AES, 1200W peak
RECOMMENDED AMPLIFIER : MA2.0
SENSITIVITY (6) : 97dB
MAXIMUM SPL (9): 122dB continuous, 128dB peak
NOMINAL IMPEDANCE: 8 ohms
DISPERSION (-6dB): 80˚ horizontal, 50˚ vertical
CROSSOVER : 2.2 kHz passive
ENCLOSURE : 38 litre, multi-laminate birch ply
FINISH : Textured black paint
PROTECTIVE GRILLE : Black perforated steel
CONNECTORS : 2 x Neutrik NL4
PIN CONNECTIONS : FR+,- : 1+,1- , Link thro’: 2+,2-
FITTINGS : 10 x M8, 4 x M8 threaded inserts
1 x mounting pole socket
1 x pocket handle
DIMENSIONS : (W) 398mm x (H) 571mm x (D) 365mm
(W) 15.6ins x (H) 22.5ins x (D) 14.3ins
WEIGHT : 21kg (46lb
