Alto TX212S 900 Watts 12-inch Powered Subwoofer

SKU: E-5-1121

Brand:
Alto

Category:
Pro-Audio

Sub-Category:
Subwoofers

There are times when your sound system needs additional low-frequency output and “punch.” For those situations, Alto Professional proudly offer the TX212S powered subwoofer. The TX212S subwoofer extend the bass response of virtually any full-range speaker, relieving that speaker of the difficult task of having to reproduce the low bass frequencies. This creates a system with stunning wide-range response characterized by dramatic, impactful low frequencies and effortless, undistorted mids and highs. The listening audience will hear everything with perfect clarity, from the lowest bass synth tones to the highest percussion bells and everything in between.

PHP 27,000.00

PHP 24,300.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

ADD A ROCK-SOLID FOUNDATION TO YOUR MUSIC

There are times when your sound system needs additional low-frequency output and “punch.” For those situations, Alto Professional proudly offer the TX212S powered subwoofer. The TX212S subwoofer extend the bass response of virtually any full-range speaker, relieving that speaker of the difficult task of having to reproduce the low bass frequencies. This creates a system with stunning wide-range response characterized by dramatic, impactful low frequencies and effortless, undistorted mids and highs. The listening audience will hear everything with perfect clarity, from the lowest bass synth tones to the highest percussion bells and everything in between.

The TX212S subwoofer features a band-pass design and a rugged, long-excursion woofer mounted in a solidly-braced ported enclosure, computer-optimized for powerful low-frequency performance. The enclosure is made from Medium Density Fiberboard (MDF). This strong, resonant-free material has virtually perfect acoustic characteristics, which ensures that the TX212S subwoofer’s output is always clear and impactful. Cheaper enclosure with flex-prone walls actually rob the speaker of acoustic impact by dissipating the driver’s energy as cabinet vibration. A sturdy, braced MDF enclosure doesn’t waste the driver’s motion as cabinet resonance.

Strong, clear output is only half the battle, however. In order for a subwoofer to be part of an ideal speaker system, it must blend seamlessly with the companion speaker. This is where the Alto Professional TX212S subwoofer truly excels like none other in its size category. The TX212S subwoofer features a choice of six selectable DSP output modes so the subwoofer’s frequency response and crossover frequency are perfectly-matched to the speaker that it is being used with. Four of these six output options match the subwoofer perfectly with Alto Professional’s TX2 full-range speakers, while the other two output options give you Hi-Pass or Bypass mode.

The TX212S features on-board 900-watt amplifier (450 watts continuous) with proprietary limiting circuitry that provides electronic clip, thermal and transducer overload protection, ensuring that the system always sounds clean and clear, no matter how hard it’s pushed.

DSP Output Mode

For precise signal adjustment, TX212S employs Digital Signal Processing (DSP). This feature gives you a cleaner, more accurate sound. The DSP controls EQ, distortion detection/limiting, crossover frequency and signal delay with virtual perfection and without the productionvariability inherent in analog filtering. Simply stated, DSP takes an analog signal, converts it to digital and then performs all the desired modifications and adjustments in the digital realm, where it’s totally free from the inaccuracies and susceptibility to added noise that plague analog signal processing. DSP is a major reason why Alto Professional subwoofers are so clean, dynamic and versatile.

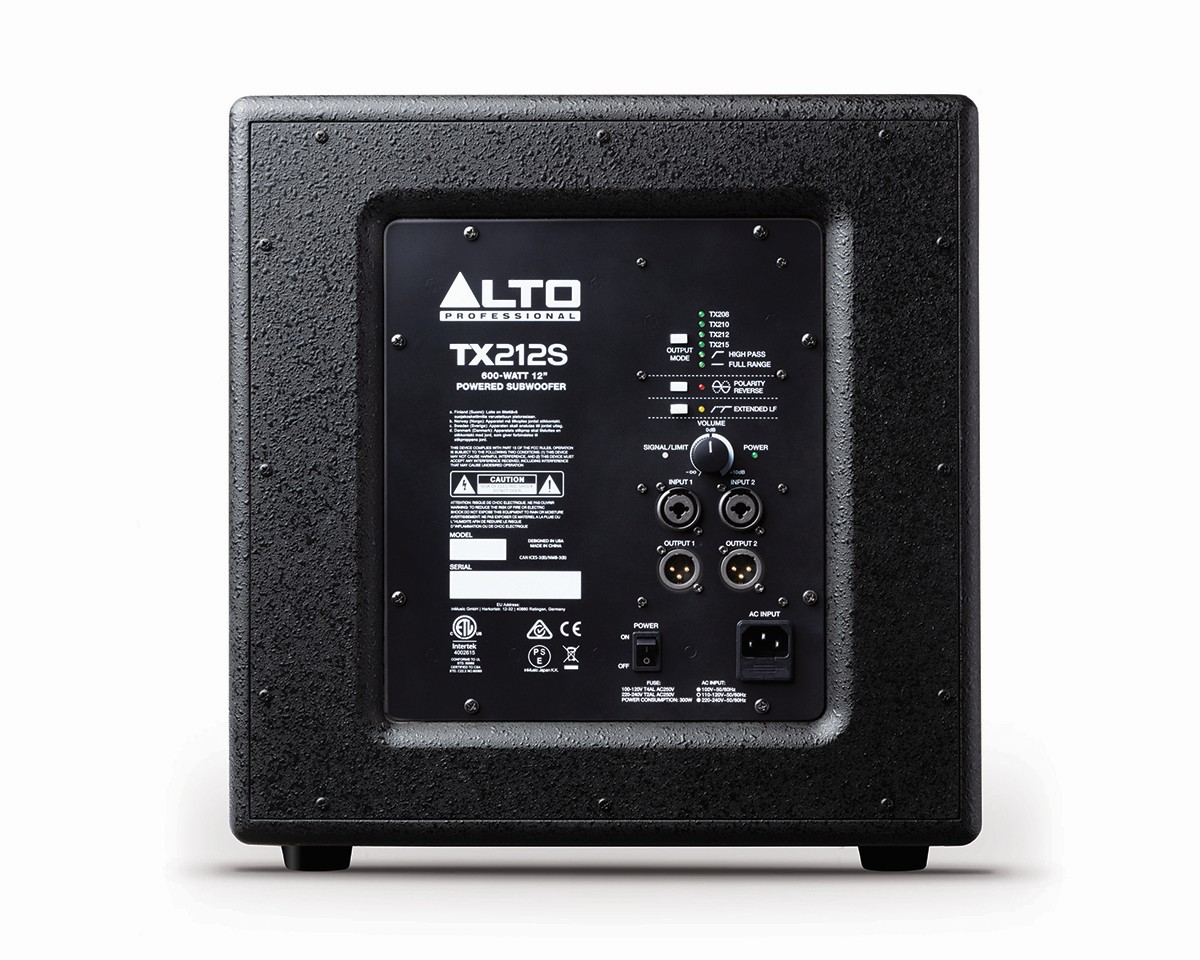

The DSP Output Mode switch on the rear panel of TX212S toggles between six settings that adjust delay, crossover frequency and the level of the XLR outputs. This feature optimizes your speaker system performance while also simplifying your full-range speaker + subwoofer setup. If you have an Alto Professional TX2 loudspeaker, using the correct setting will allow your loudspeaker and TX212S to be time-aligned, crossed over at the ideal frequency and level-matched.

Press the DSP Output Mode switch to select between the following settings:

TX208: Matches TX212S with the Alto Professional TX208 full-range speaker.
TX210: Matches TX212S with the Alto Professional TX210 full-range speaker.
TX212: Matches TX212S with the Alto Professional TX212 full-range speaker.
TX215: Matches TX212S with the Alto Professional TX215 full-range speaker.
High Pass: Employs a 100Hz crossover frequency with no delay or level adjustments. This setting works quite well with a wide variety of non-Alto Professional speakers.
Bypass: Bypasses the DSP functions (there will be no crossover, delay or level adjustments). This setting is ideal for daisy chaining subwoofers. Once you have selected a setting, the corresponding LED will be lit.

RUGGED, DYNAMIC 12-INCH SUBWOOFER FEATURING 900 WATTS OF EXPLOSIVE POWER

900 watts of peak power output
High-efficiency Class D amplifier
Transducer: 12-inch with 2.5-inch high-temperature voice coil
(2) XLR+1/4-inch combo inputs + (2) balanced XLR line outputs
XLR outputs, with six discreet DSP output modes for ideal matching with companion full-range speaker
Polarity Reverse switch and Extended LF switch for increased EQ control
Electronic clip, thermal and transducer overdrive protection
Rugged, internally-braced front-ported MDF cabinet with integrated 36mm pole socket
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Designed and tuned in the USA

TECH INFORMATION

Output Power: 900 W peak, 450 W continuous
Amplifier: High-efficiency Class D amplifier
Transducer: 12” (305 mm) woofer, 2.5” (63.5 mm) voice coil
Frequency Response: 46 Hz – 115 Hz (- 3 dB)
Frequency Range: 40 Hz – 130 Hz (-10 dB)
Maximum SPL: 126 dB (@ 1 m) 123 dB continuous (dB SPL @ 1 m)
Connections: (2) XLR+1/4” (6.35 mm) inputs; (2) XLR outputs; (1) IEC power cable input
Input Level: Line -4 dBu (nominal)
External Controls: Volume control, DSP output mode switch, polarity-reverse switch, extended low-frequency switch, power switch
Indicators: Signal/clip limiter LED, six DSP output mode LEDs, polarity-reverse LED, extended low-frequency LED, power switch LED
Electronic Protections: Electronic clip, thermal and transducer overdrive protection
Enclosure: Internally braced MDF cabinet; 36 mm mounting pole socket on top panel
Rugged, mar-resistant splatter-spray finish always looks good, even with heavy use
Power Connection: IEC with Mains Fuse
AC Voltage Input: 100,110-120,220–240 V, 50/60 Hz
Consumption: 450 W Fuse: T4AL AC250V (100–120 V) or T2AL AC250V (220–240 V)
Dimensions (H x W x D): 16.6” x 15.9” x 20.4” / 421mm x 403mm x 518mm
Weight: 44.32 lbs. / 20.1 kg
Design Origin: Designed and tuned in the USA
Accessories: TX212S Cover
