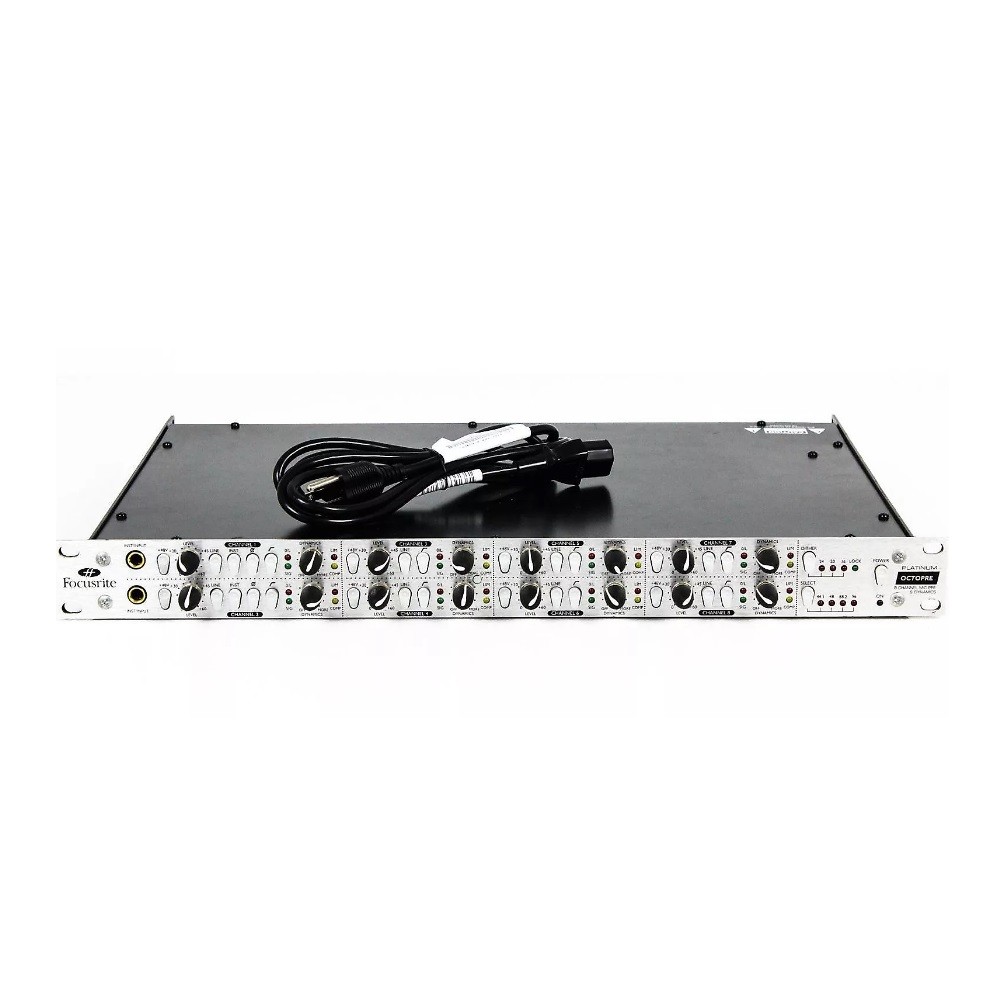

Focusrite Platinum OctoPre 8-Channel Mic Preamp

SKU: E-2-283

Brand:
Focusrite

Category:
Computer Audio

Sub-Category:

The mic pres featured in OctoPre are the same as those featured elsewhere in the award winning Focusrite Platinum range. They are a transistor-based Class A design utilising the same full-bandwidth philosophy as the legendary Red and ISA mic pres, ensuring detail and clarity without colouration. The first two 'super channels' also feature phase reverse, as well as TRS jack inputs on the front fascia for quick and easy, DI-free instrument plug-in.

PHP 64,500.00

PHP 19,350.00

This product is currently out of stock on our online store but is available at our physical stores / branches. Check out our store locator to find and contact a branch near you.

Introducing The Focusrite Platinum OctoPre 8-Channel Mic Preamp routes directly to any digital audio workstation via 8 standard analog outputs or via a choice of 2 optional 24-bit, 96kHz A/D converters. The new OctoPre offers the unique qualities associated with the Focusrite name at an affordable price. Each channel features a revolutionary compressor/limiter circuit, providing a warm-sounding compressor which morphs into a brick wall limiter to avoid those critical overs, ensuring total control over all 8 channels. The mic pres are the same as those featured elsewhere in the award-winning Focusrite Platinum range. They are a transistor-based Class A design using the same full-bandwidth philosophy as the legendary Red and ISA mic pres, ensuring detail and clarity without coloration. The first 2 "super channels" also feature phase reverse as well as TRS jack inputs on the front for quick and easy, DI-free instrument plug-in. 8 line-level balanced (+4dBu) analog inputs and outputs are provided via 25-pin D-type connectors. These D-type connectors may be routed to 8 XLRs by means of an 8-way 25-pin D-type to 8 XLR breakout cable, available separately.

In addition to the analog outputs, the OctoPre can be fitted with an ADAT interface card or AES/SPDIF/ADAT interface card (both available in the related product box below). With Class A Focusrite processing and almost all the interface options known to man, the Platinum OctoPre is the perfect partner for any Pro Tools system or any other digital audio workstation, making high-quality, multichannel recording easy. Also makes a great instant location recording solution or additional set of mic pres for any analog or digital console or hard disk recorder.

Inputs,
Electronically balanced 20kW
Nominal level +4dBu / -10dBV

Input Connectors,
1/4 in. jack (channels one and two only)
25 pin D-type 8 channel line level analogue connector
8 XLR inputs for Mic

Front Panel Controls,
Phantom Power: On/Off: +48V
Gain (mic): 0dB to 60dB
Gain (line): -10dB to +10 dB
Gain (instrument): 0dB to 60dB (Impedance > 1MOhm)
Phase Reverse: On/Off (Channel 1 & 2 only)
High Pass filter: On/Off: -12dB / octave. -6dB at 75Hz
Dynamics: Limiter threshold is fixed at 20dBu. Compressor threshold and ratio is variable
Frequency select: Switchable (44.1, 48, 88.2, 96kHz)
Dither: 24-, 20- or 16-bit

Metering,
Signal Present: -20dBFS (green LED)
Overload: +22dBu (red LED)
Compressor mode: Yellow LED intensity increases with compression
Hard Limit mode: Red LED on when limiting (threshold = +20dBu)

Analogue Output,
25-pin D-type 8 channel analogue connector
Performance specifications,
THD: 0.001% @ 20dBu input, mic and line at 0dB gain
Noise: -96dB at unity gain through the unit
Mic EIN: -128 dBu @ 6dB of gain with 150Ohm termination impedance
Frequency response: -1dB at 10Hz to 200kHz

Dimensions,
480mm (w) x 44mm (H) x 265mm (D)
Weight, 3.2kg
